Metal Jet
EN 10349 Carbon steel + galvanizing 200 g/m2 MICRO PERFORATED PRE PAINTED STEEL EN 10349 Carbon steel + galvanizing 150 g/m2 Anti-corrosive PRIMER base + polyester paint PAINTED STEEL EN 10349 Carbon steel + galvanizing 200 g/m2 Hot painting with powder AISI 304 STAINLESS STEEL EN 10088 ALLOY 1.4301 Austenitic 2B, 2D, BA satin or Scotch-Brite STAINLESS STEEL AISI 316 L EN 10088 Austenitic 2B, 2D, BA satin or Scotch-Brite STAINLESS STEEL AISI 430 EN 10088 Ferritic 2B, 2D, BA satin or Scotch-Brite
By request, KLIMAGIEL also offers solutions in non-ferrous materials such as COPPER or ALUMINIUM.
White
Grey aluminium
Anthracite grey
Black
Blue
(The representation of the RAL colors shown is to be considered approximate, caused by the difference in the representation on the screen. For an exact color reproduction it is advisable to refer to an original RAL color chart.)
Metal jet metal diffusers are available in a circular cross section with diameters from 200 to 1500 mm .
CIRCULAR
SEMICIRCULAR
QUARTER
SAVING IN HEIGHTS
EASY INSTALLATION
ATTRACTIVE SOLUTION
ANTI CONDENSATION EFFECT
QUIET ENVIRONMENT
As far as air distribution is concerned, diffusion will always be determined by an appropriate number of rows of holes calculated in relation to the air flow rate of the ventilation unit and the pressure available at the inlet of the diffuser itself.
Air is distributed in the environment in full compliance with UNI 10339 – EN 13182 (air velocity at human height).

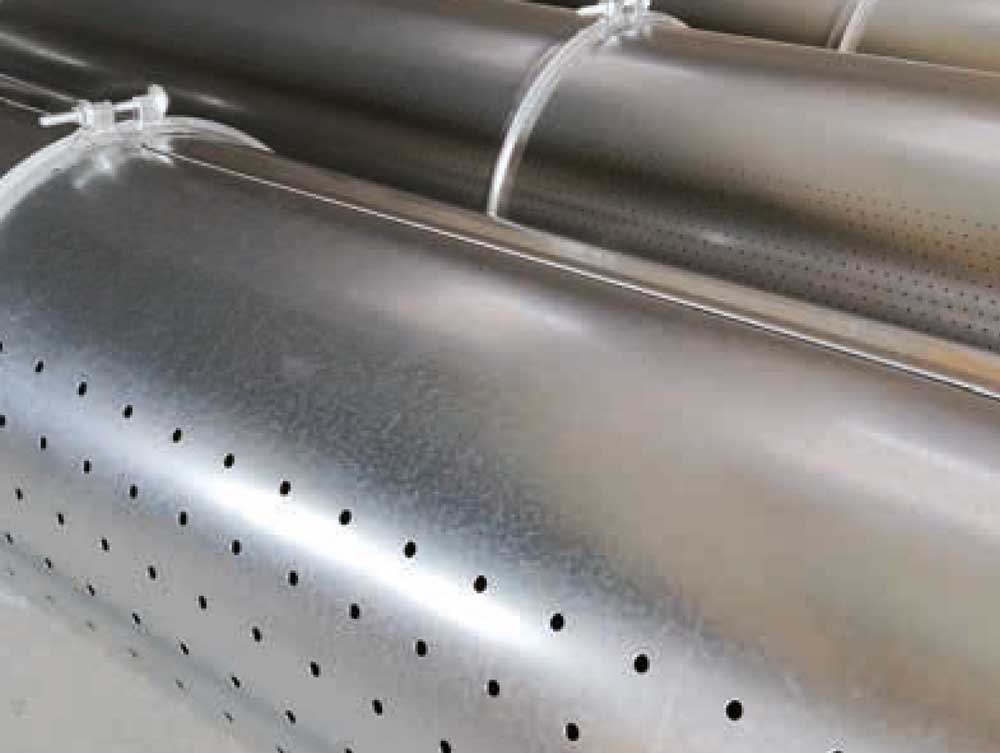

With particular regard to the ease of assembly and the quality of the final result, KLIMAGIEL’s experience has led to the study and implementation of unique solutions for the benefit of its partners. The FAST-FIX circular ducts, 1250 mm long, are normally supplied with a longitudinal bayonet joint for closing on site (with consequent reduction of transport costs), without the need for riveting. The flaps are suitably shaped with a patented folder system for discharging the tensions of the material. For diffusers with a diameter of 900 mm or greater, the internal stabilization template (PATENT PENDING) is available as an accessory, which facilitates assembly and maintenance of the circular shape. This is particularly useful during the assembly phase, to avoid ovalisations and coupling difficulties between the sections of duct, in often already complex working conditions.
The high induction KLIMAGIEL diffusers are available with a membrane system for optimal management of the summer/winter season.
Our inspection METAL JET diffusers were created in response to the specific need for maintenance and maximum hygiene in large food-production chains.

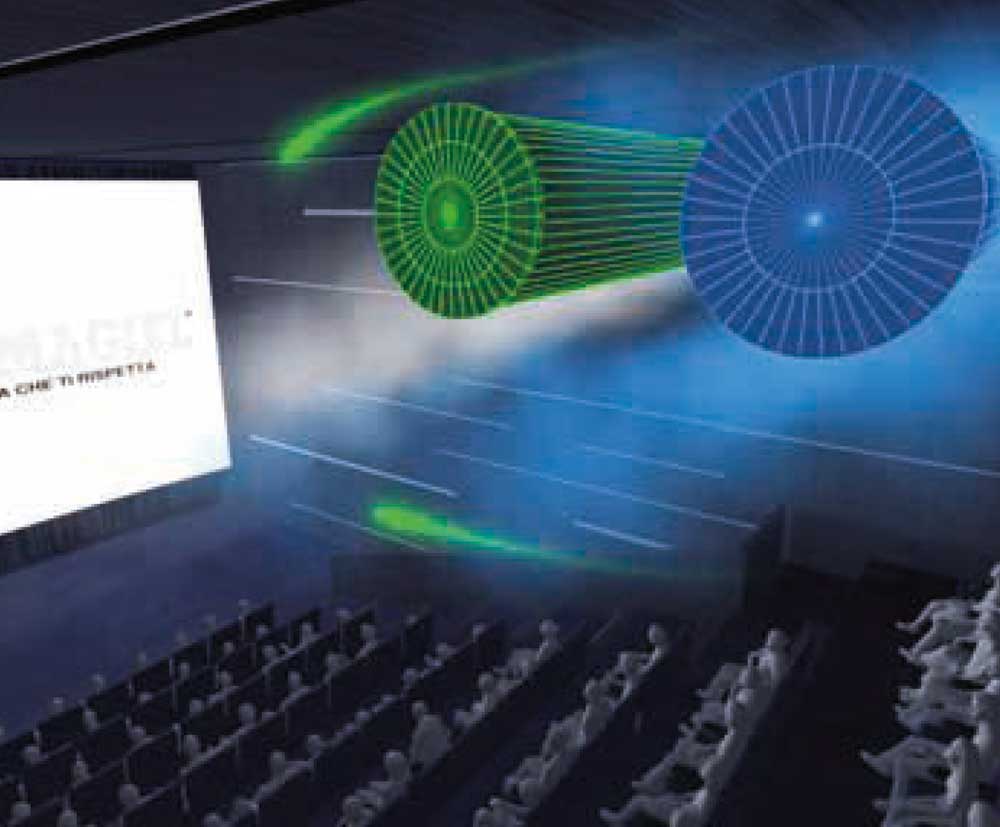

The DYNAMIC JET circulation system permits air handling in environments where it is necessary to vary the flow rate through the system. Such is the case anywhere teh ENDOGENOUS LOAD IS NOT CONSTANT over time. This could be due to the crowding, production start-up processes or other causes. High induction diffuser ( also called induced movement ) is normally applied in situations requiring sufficently stable flow and pressure in order to properly. DYNAMIC jet is a VARIABLE FLOW SYSTEM, composed of one or two rpimary induction diffusers and a secondary diffuser ( displacer ) installed on a plenum with a system of dampers, actuators, and probes to control the flow and internal pressure. The system is designed to MAINTAIN OPTIMAL CONDITIONS in the primary diffuser to treat teh environment correctly by effectively mixing teh air. The secondary diffuser is instead used for additionlal air that is emitted more gently, which,also recalling the induction effect of the primary diffuser, enters the area to be trated.
Induction Metal Jet
Materials
MATERIAL
NORM
STRUCTURE
SUPERFICIAL ASPECT
GALVANIZED STEEL
ALLOY 1.4404
ALLOY 1.4016
THE NEW DIMENSION OF THE COMFORT
Diffusers in polished or satin stainless steel AISI 304/316
Diffusers in galvanized steel
Diffusers in pre-painted galvanized steel
Diffusers in painted galvanized steel (all the colors of the RAL scale)
Copper diffusers
Pre-painted colors
(RAL 9010)
(RAL 9006)
(RAL 9006)
(RAL 9005)
(RAL 5010)With the choice of powder coated steel, design and architecture studios will have to access to all colours in teh RAL CLASSIC range.
RAL – Classic Color Card
A special copper effect paint is also available, with great cost advantages and stability over time compared to true copper. A wide range of available fittings means duct paths can be designed for any environment. The diffusers are designed to facilitate quick and safe assembly with just a few tools.
Available cross section
Each size and shape is available in all variations of established material and colour.
At Klimagiel, we seek put and offer our partners the best possible solution,carefully evaluating every technical, functional, economic and architectural aspect.
The fastening system are based on criteraia of absolute reliability and speed of assembly.
The advantages of metal diffusers at a glance
High environmetal comfort due to uniform treatment air in the room.
Easy assembly with the bayonet mount and connection clamps.
Anti condensation effect on duct surfaces.
Silence in the environment suitable for all applications thanks to the calibration and distribution of the holes and the rigorous control of the speeds.
Induction OVAL Jet
Strenghts
The unique oval shape enables a space- saving up to 50% compared to circular ducts.
Use of the new KLIMA-PLUG interlocking system allows for quick and easy installation.
The diffuser is modern, pleasing to the ey, and it can be easily integrated into any structure.
These diffusers naturally aslo the advantages of high-induction circular ducts, that is:
Micrometric control of the output air velocity ( which generates teh “high induction” effect) ensures the airflow is maintaned over the entire duct surface, preventing stagnant air and the formation of condensation
The calibration and the distribution of the holes and strict velocity ensure a quiet environment suitable for all applications.
The new OVAL cross section is available in steel:
The oval ducts are supplied in 1 meter long modules, with connection via male/female coupling to be riveted.
The flaps are suitably shaped to facilitate insertion and ensure the discharge of material tension. Each module is supplied as standard with a ceiling-mounting clamp, complete with M8 female nuts for screwing into a threaded rod or other coupling system.
AVAILABLE SIZES
Assembly solutions
Seasonal optimization with switch kit
The system is strongly recommended in all those applications in which sufficient useful static pressure is not available at the entrance to the channel, also with reference to the installation height.
It is an internal polyester membrane, which is placed longitudinally along the entire length of the diffuser.
The movement is controlled by a servomotor, and allows you to select the opening of the lower or upper perforation of the diffuser.
In the presence of a cooling request, the membrane adheres to the lower part of the duct, allowing the air flow to the upper part.
Conversely, when the system is set to heating, the system closes the upper holes and the flow is conveyed directly downwards.
This optimizes the functioning of the system, guaranteeing better homogeneity of temperatures and comfort in the environment.
The membrane solution is available for both fabric and metal ducts (Patent Pending).
Inspection METAL Jet
Stainless steel diffuser
With a specific , innovative project KLIMAGIEL has responded to the need to reduce the time required for for maintenance, cleaning and sanitization of air conditioning systems in highly productive industrial environments.
Our new SEMICIRCULAR CROSS SECTION metal diffusers can be inspected along every metre, thereby enabling quick and effective inspections.
The semicircular structure, made entirely of STAINLESS STEEL, can be opened on one side by means of a quick release system.
Bacteria on the surfaces can be reduced by up to 99%.Advantages at a glance
Cuts maintenance and cleaning costs and reduces production downtime…
Easy to monitor technical and hygienic conditions of the air-handling system…
Nearly total elimination of bacteria.
DYNAMIC Jet
Variable flow system
Advantages at a glance
Possibility to modulate the flow from 30% to 100% for greater comfort…
Optimal heat distribution, uniform environmental conditions and maximum system performance.
Energy saving, thanks to the elimination of stratification.
